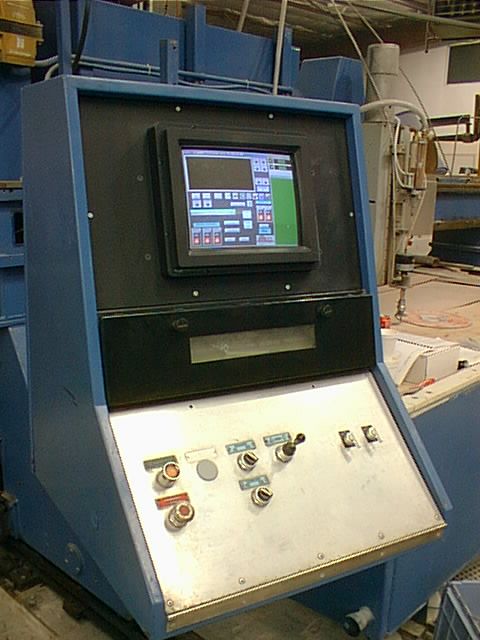

This example of a Waterjet Control Package using a Industrial Touch Screen and a Windows based PC control.

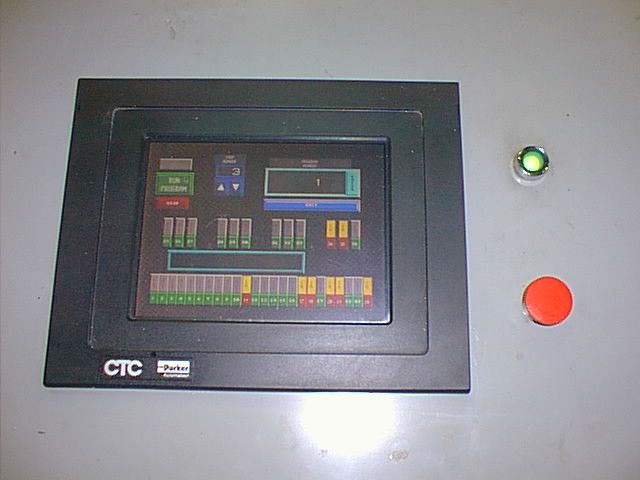

This control was created for a special pattern punching machine. The operator could define the pattern visually on the Touch Screen, which would then set the correct punches. Multiple patterns could be stored and retrieved.

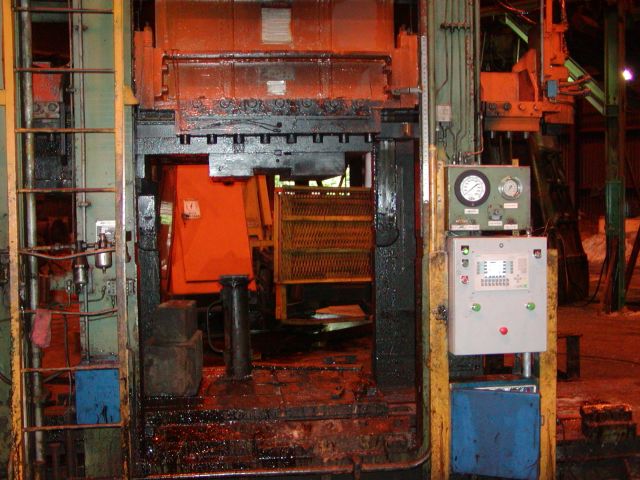

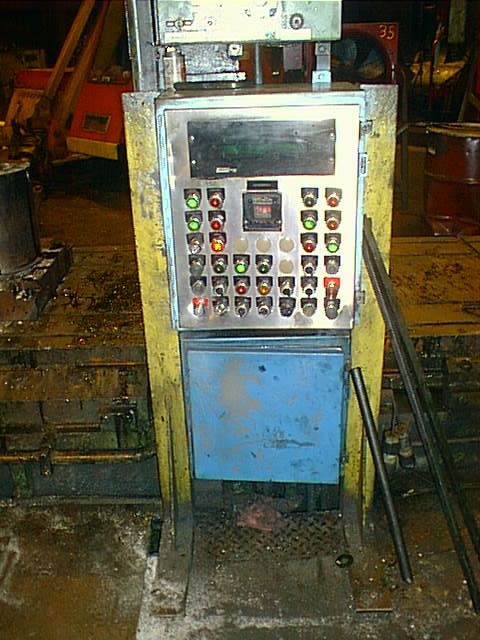

These before and after photos show the dramtic simplification available to operator controls. Graphics on the new color display allow the operator to quickly assess machine status, and the more intuitive control funtions eliminate training for new operators.
